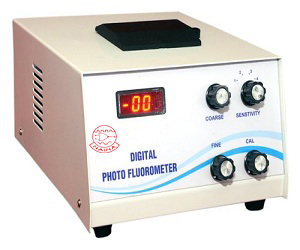

Determines The Concentration Of Flurophors Quinine. Full Scale Deflection Obtained With 1ppm Quinine Sulphate In 0.1 N Sulphuric Acid (Primary Wavelength 360nm) Primary Filters: Corning 5840 And Corning 5113 Mounted Holders. Secondary Filters: Corning 4308, Corning 3486, And Corning 3385 Mounted On Holders. It Is Used For Analysis Of Fluorohors Such As Vitamins, Quinine, Steroids, Fluorescein, Metal Complexes Etc.
Features:
3 digit LED display.
High stable and Accurate.
Adjustable in 4 ranges.
Minimum sample 4ml.
Determines the concentration of Flurophors Quinine.
Highly Sensitive Wide Range Photodiode/Cell.
| Parameter | Data |
| Display | 3 Digit LED display |
| Sensitivity Range | Adjustable in 4 Range |
| Excitation source | 12V, 50W.Tungsten halogen lamp. |
| Primary Filters | Corning 5840 And Corning 5113 Mounted On Holders |
| Secondary Filters | Corning 4308, Corning 3486, Corning 3385 Mounted On Holders |
| Detector | Highly Sensitive Wide Range Photodiode/Cell |
| Minimum Sample | 4ml |
| Test Tube Samples Size (D x H ) | 15x80mm |
| Power supply | 230 V ±10%, 50 Hz AC. |
| Dimension (LXBXH) & Waight | 255x300x145 mm : 5 Kgs (Approx.) |
| Measurement | Determination of Concentration Of Flurophors Quinine. | Accessories | Primary And Secondary Filters, A Set Of 5 Test Tube, Manual, Dustcover etc. |
